腾达试验仪器厂：

　　一、产品简介：

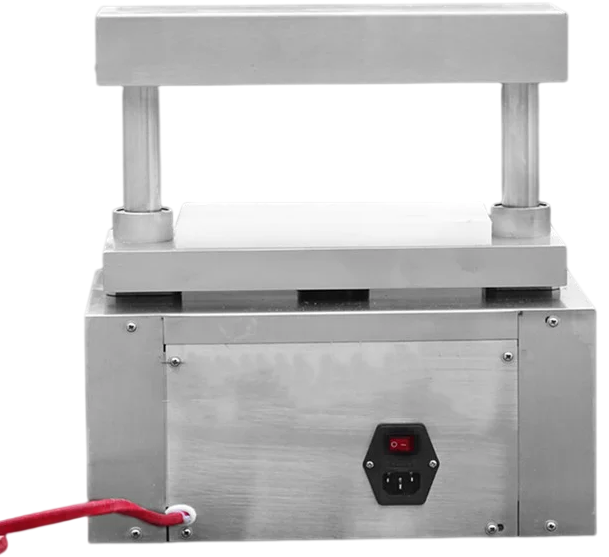

　　防水卷材电动冲片机是我公司研发上市的新型冲片机，接通220V电源即可实现对防水卷材试样的哑铃片的制取，改变了手动型需要大力气、气动型需要现场有空气压缩机的局限性。更小的体积，更大的冲裁力，更方便的试验手法!电动冲片机是实验室制样的得力助手!

　　1.Product introduction:

　　The waterproof coiled material electric punching machine is a new type of punching machine developed and marketed by our company.It can be used to prepare the dumbbells of the waterproof coiled material sample by turning on the 220V power supply.It changes the manual type requires great effort,and the pneumatic type requires on-site There are limitations of air compressors.Smaller size,greater punching force,more convenient test method!Electric punching machine is a powerful assistant in laboratory sample preparation!

　　二、主要特点：

　　◆体积小

　　◆力气大

　　◆现场无需空气压缩机，噪音小

　　◆试验员操作轻松，省力

　　2.Main features:

　　◆Small size

　　◆Large strength

　　◆No need for air compressor on site,low noise

　　◆The tester can easily operate and save effort

　　三、主要技术参数：

　　◆冲切行程：≧100mm

　　◆冲裁力：≧30KN（3吨）

　　◆工作台尺寸：200*120mm

　　◆电源：220V 50HZ

　　◆外形尺寸：330*270*350mm

　　◆净重：45KG

　　3.Main technical parameters:

　　◆Punching stroke:≧100mm

　　◆Blanking force:≧30KN(3 tons)

　　◆Working table size:200*120mm

　　◆Power supply:220V 50HZ

　　◆Dimensions:330*270*350mm

　　◆Net weight:45KG
